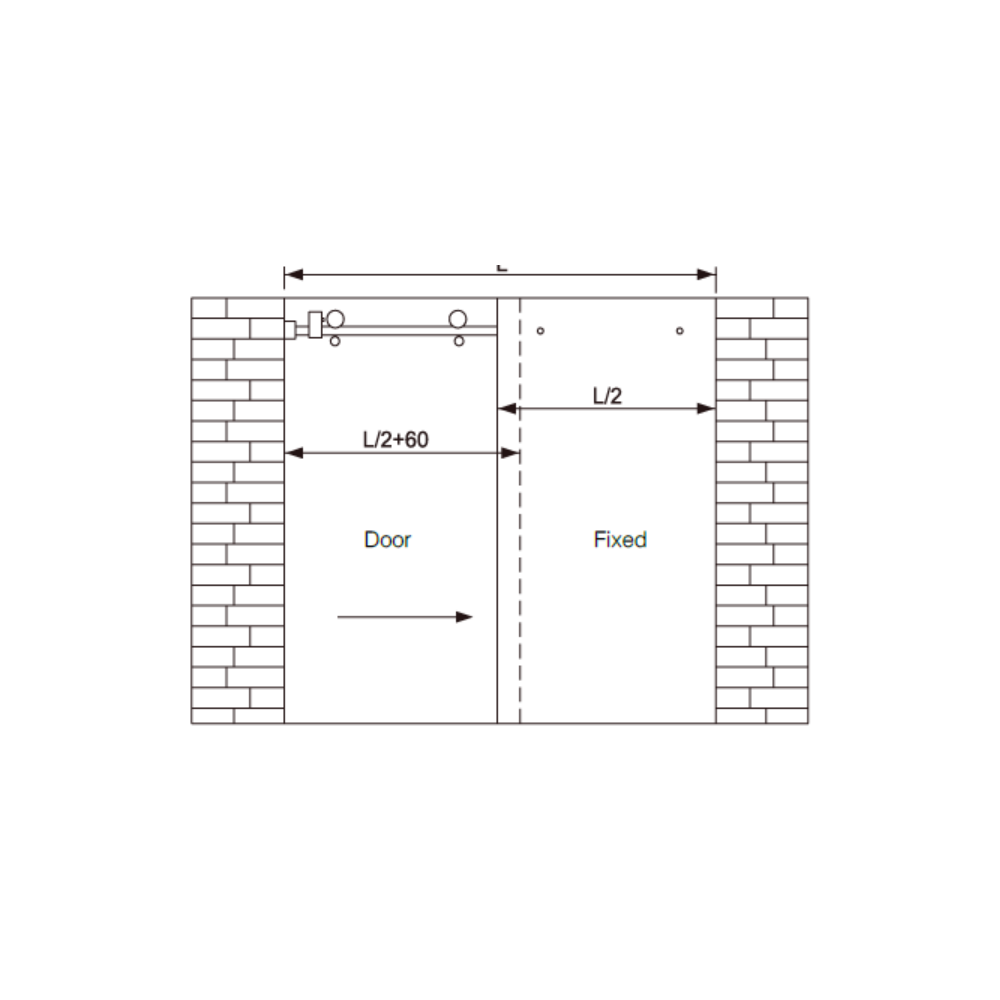

Nonstandard shower room installation diagram.

Instructions:
1. Maximum weight weganing of the shower room: 65kg.
2. 180° maximum installation length is 1.8m, 90° dual-open door maximum installation length is 1.0m.
3. There are no drilled holes in the guide rails ordered by users. Holes shall be made during installation.
4. The accessories are only suitable for clamping 8mm-10mm glass.
5. When drilling holes in glass, please do strictly in accordance with dimensions in the installation diagram.
6. Every type can install 90° dual-open, 90° single-open and 180°.

SLD 001 Top Roller (Door) ↴

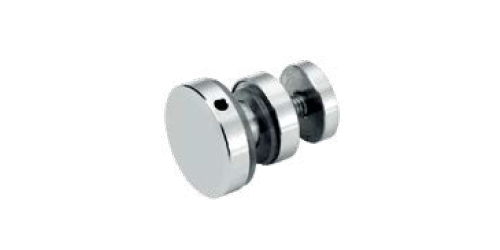

SLD 002 Centre Fixed (Track) ↴

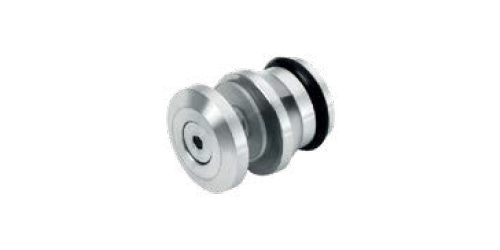

SLD 003 Bottom Roller (Door) ↴



SLD 004 Door Stopper ↴



SLD 005 Floor Guide ↴

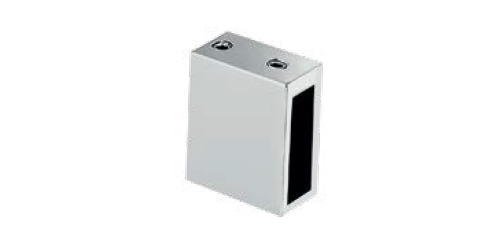

SLD 006 End Cap ↴

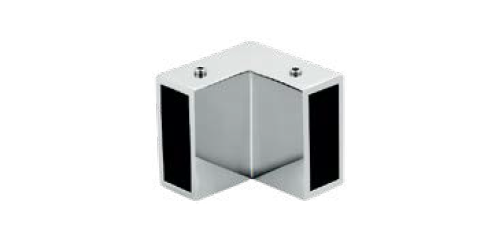

SLD 007 L Shape Corner Bracket ↴

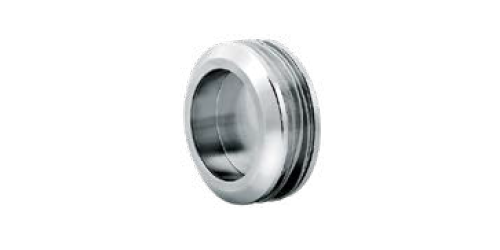

SLA 002 Shower Door Knobs ↴
