Max. Door Leaf Width: 1000mm
Max. Door Leaf Load: 90kgs ~ 120kgs
Glass Thickness: 8-12mm

HOLE OPENING ↴

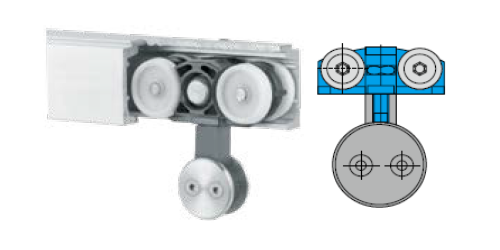

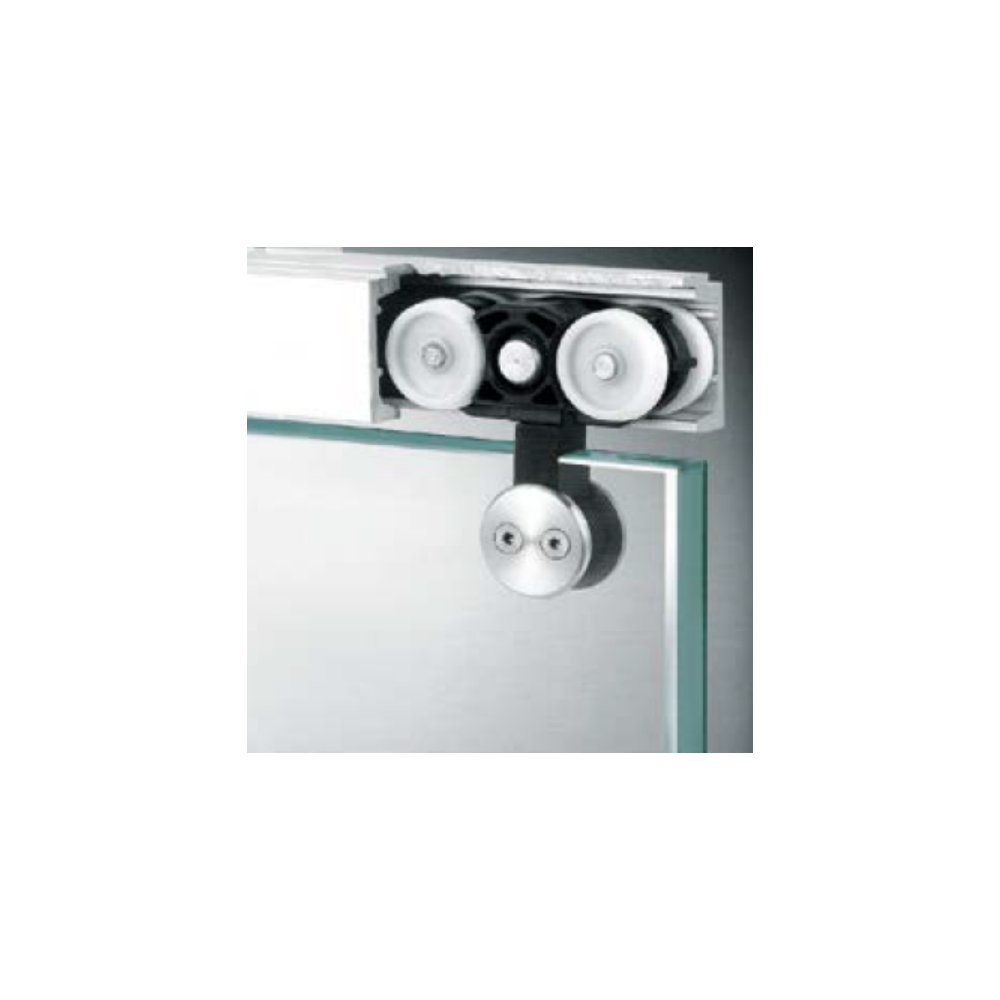

SLA-001 Track Roller ↴

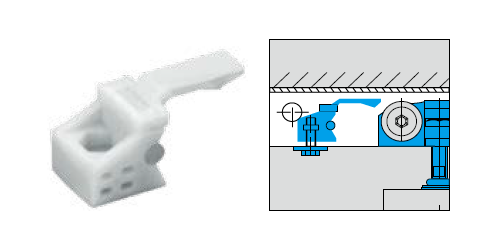

SLA-003 Stopper ↴

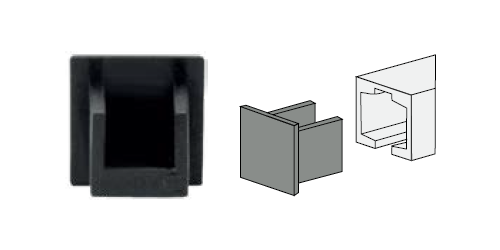

SLA-004 End Cap ↴



SLA-005-L 90 Deg Track Connector ↴



SLA-006 Wall to Track Connector ↴



SLA-007 Floor Guide ↴

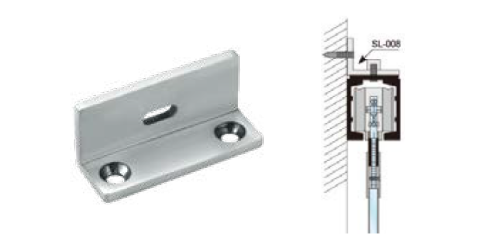

SLA-008 Bracket ↴

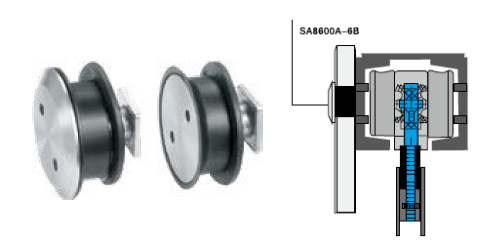

SLA-009 Glass Hanger ↴

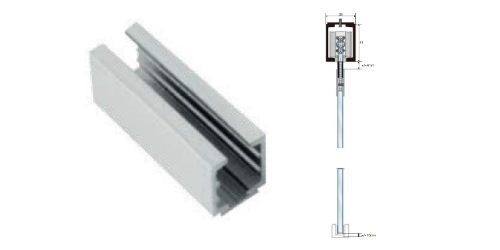

SLA-010 Aluminium Single Track ↴



Finish: Aluminium Color
Material: Aluminium
Available Size: 2.0 / 3.0 / 6.0

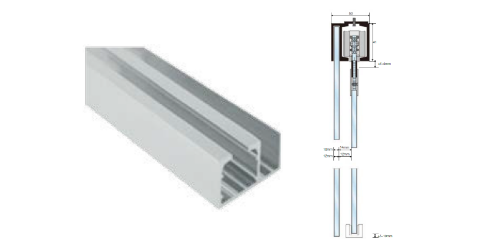

SLA-011 Aluminium 1 Fixed 1 Slide Track ↴



Finish: Aluminium Color
Material: Aluminium
Available Size: 2.0 / 3.0 / 6.0

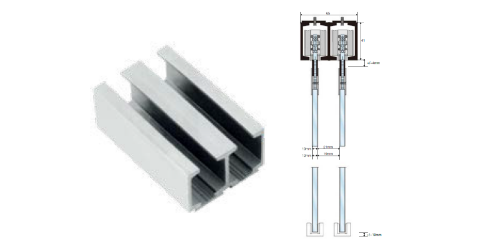

SLA-012 Aluminium Double Track ↴



Finish: Aluminium Color
Material: Aluminium
Available Size: 2.0 / 3.0 / 6.0

MODEL NO	DESCRIPTION	FINISHING	MATERIAL	SIZE	PACKING
					BOXES	CTN
SLA-001	SLA-001 Roller @ 2 NOS	Hairline	Aluminium	-	1set	10set
	SLA-003 Stopper @ NOS	White	PVC
	SLA-007 Floor Guide @ 1 NOS	Hairline	Aluminium
SLA-004	End Cap for Track	Black	PVC	-	10pcs	200pcs
SLA-005-L	90 Deg Track Connector	White	Nylon	-	10pcs	100pcs
SLA-006	Wall to Track Connector	White	Nylon	-	10pcs	200pcs
SLA-008	Hanging Bracket for Track	PS	S/S	-	10pcs	100pcs
SLA-010	Aluminium Single Track	Aluminium	Aluminium	2.0Mtr	-	10/pcs
	Aluminium Single Track	Aluminium	Aluminium	3.0Mtr	-	10/pcs
	Aluminium Single Track	Aluminium	Aluminium	6.0Mtr	-	10/pcs
SLA-011	Aluminium 1 Fixed 1 Slide Track	Aluminium	Aluminium	2.0Mtr	-	10/pcs
	Aluminium 1 Fixed 1 Slide Track	Aluminium	Aluminium	3.0Mtr	-	10/pcs
	Aluminium 1 Fixed 1 Slide Track	Aluminium	Aluminium	6.0Mtr	-	10/pcs
SLA-012	Aluminium Double Track	Aluminium	Aluminium	2.0Mtr	-	10/pcs
	Aluminium Double Track	Aluminium	Aluminium	3.0Mtr	-	10/pcs
	Aluminium Double Track	Aluminium	Aluminium	6.0Mtr	-	10/pcs
