Fully controlled closing cycle. Surface finish for optimum corrosion protection.


* For applications involving particularly heavy doors and doors which have to close against wind resistance, we recommend the Dorma TS 83.

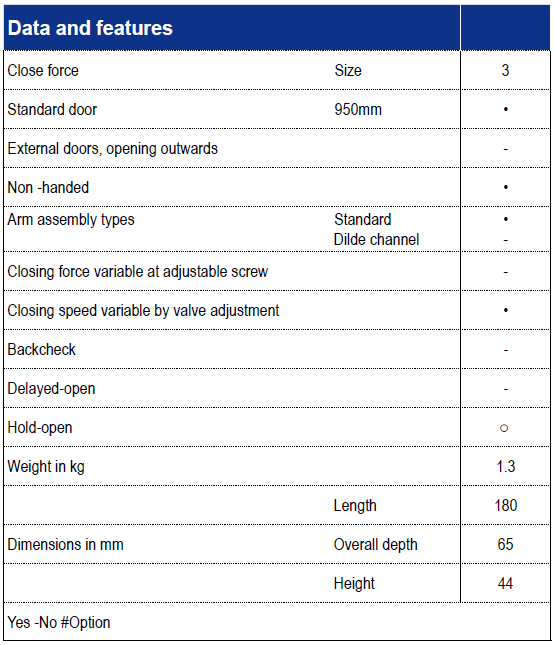

Standard and Optional Functions



Example: left-hand (ISO 6) door, pull side fixing.

1. Fully controlled closing with speed adjustable between 180° or 120° and 20°.
2. Adjustable latching action adjustable between 20° and 0°.
3. Hold-open range if equipment with hold-open arm (optional extra).

Specification Text

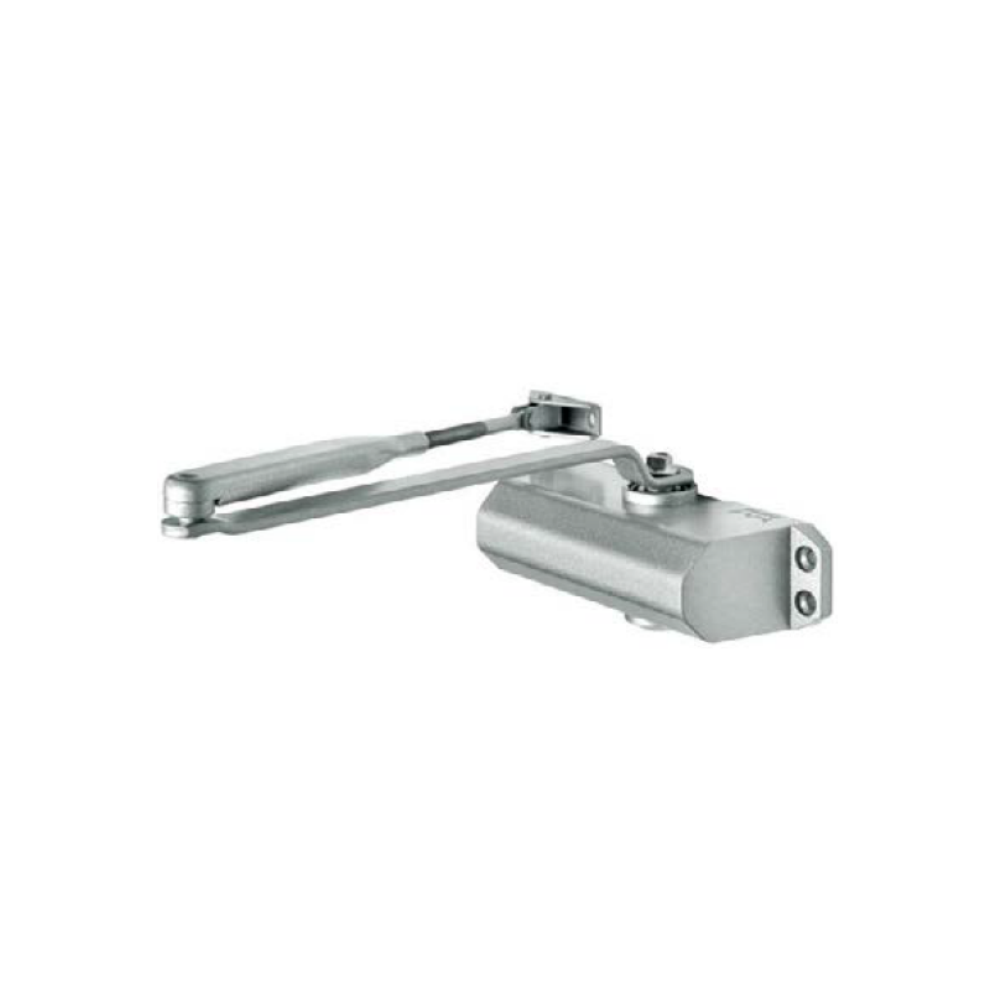

Rack-and-pinion door closer with hydraulically controlled closing cycle and non-handed.

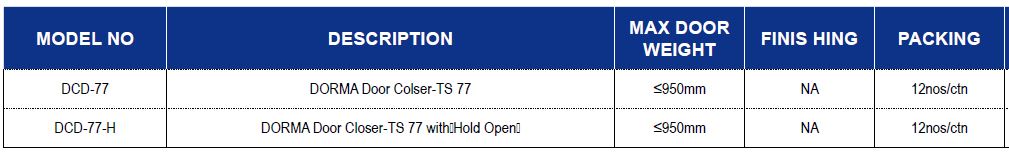

Model:
- Size 3
- With hold-open arm

Applications and fixing


- On the pull side
Door leaf fixing (standard)


- On the push side
Transform fixing (overhead installation)

Accessories


- With hold-open arm assembly
For temporary door hold-open (optional extra)


- Parallel arm
For parallel arm assembly (for installation dimensions, see fixing instructions)
